应用场景与间介：/Purpose and introduction

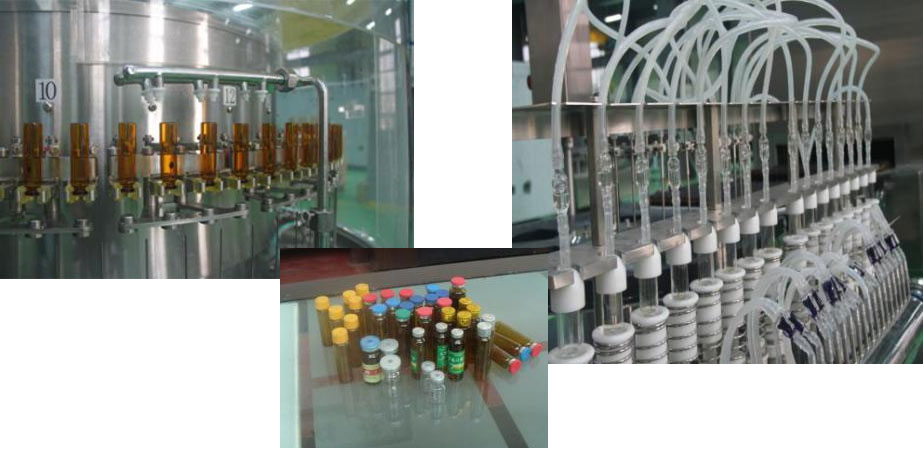

内服方式方式液洗烘灌轧对接线由垂直超声检查检查波洗瓶机、隧道施工式内反复 反复高压蒸汽灭菌处理烘烤箱、内服方式方式液分装种植线轧盖机等分解成，適合于 5-30ml 等差异规 格内服方式方式液瓶的种植。可完毕对医药种植中安瓿瓶淋水、超声检查检查波冲洗、冲水、充 气、烘干功能高压蒸汽灭菌处理、制冷、分装种植线、轧盖等技术步奏的对接启动。Oral liquid washing drying filling and rolling line by the vertical ultrasonic bottle-washing machine, tunnel sterilization oven hot wind cycle, oral liquid filling and other components of the rolling machine, suitable for 5-30 ml different gauge, etc Oral liquid bottle production. Can be done for ampoule bottle pour water in drug production, ultrasonic cleaning, flushing, filling gas, drying sterilization, cooling, filling and rolling cover joint operation of the process steps.

特性:/characteristic

◆洗瓶机使用自动化手夹瓶，用于各种各样样式的塑料瓶；Bottle washer adopts manipulator clamp bottle, is suitable for a variety of specifications of the bottle;◆洗瓶选取水蒸汽喷针往复运动跟进插进表格原则，擦洗功能好，节省清洁能源。并有针架防发抖控制系统，不断提高喷针插进表格塑料瓶的精准度，变少断针干涉现象情况；Reciprocating mixer washing bottle with water spray needle track insert way, cleaning effect is good, save energy. And is equipped with needle shake device, improve the accuracy of injection needle inserted into the bottle, reduce breakage phenomenon;◆洗瓶一个热气管线、喷针压根独特离婚，减少了交错的污染，不符合GMP实验室管理标准规范；Mixer washing bottle the water pipe, injection needles completely separate, to avoid the cross contamination, in line with the GMP requirements;◆洗瓶机进瓶螺母前安装缓存数据块，有养护螺母，减低碎瓶效用Pieces into the bottle inside the screw before adding buffer block, protect the screw, reduce broken bottles◆洗瓶机出瓶采用了整体上进出口搜集带，相连拨块卸料服食液，正常运作安全稳定靠谱In pieces out of the bottle inside the whole import synchronous belt, the connection piece of conveying liquid, stable and reliable running◆烤箱选取红外线高温管，不锈钢圆管高温管三层高温摄氏度匀称性好；Oven using infrared heating tube, stainless steel heating tube double heating temperature uniformity is good;◆分装轧盖机必选配陶瓷厂家泵、不锈钢材质泵；In pieces filling rolling machine optional ceramic pump, stainless steel pump;◆灌装生产线无瓶止灌，无瓶不轧盖基本功能。Pieces filling without bottle filling, no bottle no rolling function.◆整线适用PLC总操纵、变頻器、摸屏操纵技能，运动稳定能信能信。摸屏可彰显各单人的运动环境，各操纵点的压差、大气压力、静压、温度表等彰显，各旋钮环境和常见出现出现问题的彰显，常见出现出现问题的自我完善评估和常见出现出现问题的浅析及查出的方式。使某个产出加工的过程 完成会全自动化操纵，联线具有着三机自动化稳定平衡传动装置，能保证产出加工教育均衡发展能信。The whole line adopts PLC control, inverter, touch screen control technology, stable and reliable running. Touch screen can display the running state of each units, each control point of the water pressure, air pressure, air pressure, temperature, etc, according to the switch state and fault display, fault self-diagnosis and fault analysis and elimination method. The whole production process to achieve automatic control, on-line has the compressors control balancing device, ensure production is balanced.随着消费者的要，还可供标配：According to the needs of customers, but also available for selection:◆欧姆龙、德力西、三凌、台达等知名品牌的控制操作系统；Pieces of Siemens, schneider, mitsubishi, Taiwan brands such as control system;◆水、气的压力、油温及高周波波強度、尘灰塑料颗粒、风力高清在线查测、短信报警、备案、word打印系统化。Pieces of water, gas pressure, water temperature and the intensity of ultrasonic, dust particles, wind speed on-line detection, alarm, record and print system.◆ORABS、CRABS、灭菌底部隔离器系统。Mixer ORABS, CRABS, aseptic isolator system.

高技术因素：technical parameters

使用规格为Cutting   dimension(ml)	5-25
生产能力production capacity(pcs/min)	350
灌装设备高精准度Filling accuracy(%)	≤ ± 2.5
包装头数Fillingheads	16
轧盖头数Number of rolling   curtain	单刀20头
轧盖达标率率Rolling cover   percent of pass(%)	≥ 99
总重量total weight(kg)	7500
外形尺寸boundary dimension(mm)	9920 × 2003 × 2150
