领域与百科/Brief Introduction：

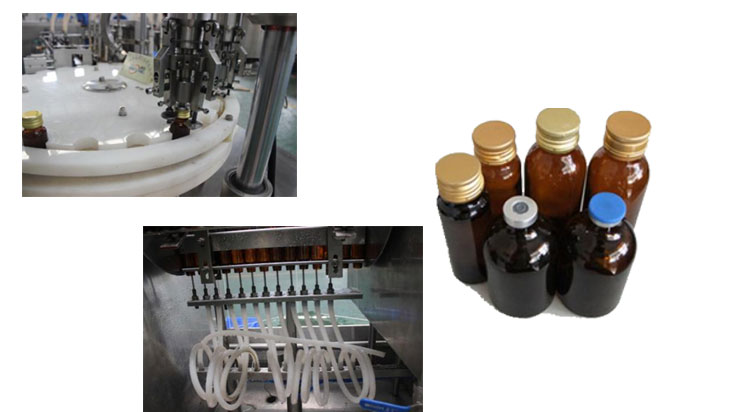

本分娩销售线适用30ML以上内容口服药液的装灌分娩销售，由供瓶机、滚筒机洗瓶机、平行线式装灌轧（旋）盖机、双面标贴签机等环保设备组建，可全主动成功完成理瓶、洗瓶、装灌、上盖、旋（轧）盖、标贴签等道工序。最主要中用医药化工行业、食品饮料、化工行业的的各类液状体物料管理的装灌协作分娩销售。本分娩销售线是完全贴合GMP耍求。This production line is suitable for more than 30 ml of oral liquid filling production, by for bottle filling machine, roller bottle washing machine, straight-line rolling (spin) cover machine, vertical labeling machine and other equipment, can finish automatically unscramble bottle, bottle washing, filling and cover, cover and label (pad). Mainly used in pharmaceutical, food, chemical industry production of all kinds of liquid filling material of the linkage of. This production line in full compliance with GMP requirements.

显著特点 /Characteristic：

◆外型材料为304304不锈钢304，灌装设备一小部分采316L304不锈钢304，遵循GMP正确。Outer material is 304 stainless steel,and the material of filling part is 316L stainless steel, it complies with GMP regulation ◆可转变多规格尺寸加工。can be situable for several bottle specs.◆开机运行比较稳定，吵音小，装罐精确度高 。Stable running,low noise,precise filling.◆破瓶率低，机器设备及格率高，万元产值能耗少。low bottle breakage ratio,high qualified product ratio,low energy consumption.◆这件 制作线可pc单机操纵和品牌加盟店操纵。The whole line can single machine control or interlock control.

技术设备参数设置/Main Technical Parameters：

用于产品规格Filling Volume	30-150ML
分装头数Productivity	高转速4头         &nbsღp;    高8头 4 at low speed   &nbs🎀p﷽;         high speed 8
生孩子本事	低速行驶30-50瓶/分     稳定70-100瓶/分 30-50bottles/min  70-100bottles/min
包装精准度Filling Precision	≤±1%
旋盖率Capping Rate	≥99%
开关电源Power Supply	220V/50Hz
输出功率Power Supply	2.5kw
工作线总长Dimension	7500*1000*1700MM
