功用与百科/Brief Introduction：

打瘦脸针用自来水机 打瘦脸针用自来水是纯化水经萃取所得到，病菌内毒物等技术指标均遵循中国国药典打瘦脸针用自来水项下法律法规的水质标准需求，可当营生物化工企业的中多种立即打瘦脸针入人体健康内中成药的高沸点溶剂。打瘦脸针用自来水机 大部分具有打瘦脸针用自来水制得、配置储藏、技术性左右和加工工艺操纵等大部分输出模块。

显著特点/Characteristic：

◆全系统自动运行方式英文，预防成员误运行获得的生育盘亏；Automatic operation mode, to prevent losses of wrong operation of production;◆零配件用到316L材料做；Components in 316L texture◆带PLC有效控制的CIP企业产品；CIP products with PLC control◆记录卡与上传擦洗流程的参数值与步；Record and save the parameters of the cleaning process and steps◆具备GMP必须的可溯源性与可聊明性； Meet GMP requirements traceability and accountability◆一身化制作有无效最省区域空间；Integrated design can effectively save space◆保证 的生产和保养的便捷锁定；Implement production and clean fast switching◆巴氏空气消毒除菌，拆洗更齐全；Babbitt disinfection sterilization, cleaning more thoroughly◆多效蒸溜机：空机液压管路接触其他进行自动式焊接生产，按安全卫生级规定，气动阀门进行快卡接触，防止出现了打针用水的的2次被污染；Multi-effect distillation machine: the machine connection all adopt the automatic welding, according to the level of healthstandard, the valve with fast connection, to eliminate the secondary pollution of water for injection◆纯过热蒸汽有器：PLC组排操控操控对话框，可0-100%自主设定至须得的产油量需要；The pure steam generator: PLC man-machine interface operation, can be 0-100% automatically adjust to the need of production requirements◆3D无全方位来设计：注塑水系统软件化净化内部管道充分满足GMP3D标准要求，胶垫为PTPE/EPDM，隔离膜阀层次的的安装时为50度，循坏管道的的安装设为0.5的坡长，设低开为尾气排放点,并且以湍液情况循坏流量的储存室和输料系统软件化，可以防止生物工程的繁衍；3 d design without dead Angle: clean water for injection system satisfies the requirement of GMP3D tube, rubber pad of PTPE/EPDM, when mounted horizontally is 45 degrees, the diaphragm valve loop pipeline installation set as 0.5 grade, set low emission points, and the turbulent fluid state circulating storage and conveying system, prevent microbes breeding◆完好的程序下载整体：①程序下载按照GMP规范；②自动式化操控整体可按照GAMP5；③3Q程序下载实现制药业厂验正的所需。Complete the file system: (1) documents conform to GMP requirements; (2) automatic control system can meet GAMP5; (3) 3 q documents meet the needs of the pharmaceutical factory to verify◆配有高功效定频泵主要用于卸料和调整打针饮用水。Equipped with high performance variable frequency pump used to transport and distribution of water for injection◆双板传热器，在纯化水长准确时间循环往复环节中实现冷却塔功效。Double plate heat exchanger in the purified water cooling effect in the process of long cycle◆针剂使用水进行贮罐优先权用柜式贮罐第二步立式贮罐，做到输送带泵地下水位的标准，小学科学软件设置罐中气速以防菌物膜转变成。Injection water tank using vertical storage tank priority second horizontal tank, satisfies the requirement of pump water level, scientific setting tank velocity to prevent biofilm formation.◆选择80℃之上隔温循坏设计的概念，以免饮用水体统微海洋生物孳生和环境破坏。Adopts the design of above 80 ℃ heat circulation, prevent microorganism growth and pollution of water system◆配用通电供暖（蒸汽发生器供暖）口呼吸脱水器。Equipped with electric heating, steam heating) breathing filter◆罐底满水后口加设球形隔板以减少采湖面，杜绝涡旋。Adding bottom outlet conical baffle to expand in the water, prevent eddy current◆贮罐对接用于N2保养，保护生物制药加水儲存及平均分配系统化送风机，以免外部链接循环废弃物。Tank access using nitrogen protection, maintain positive pressure pharmaceutical water storage and distribution system, prevent the reverse flow of external contamination◆化工拿水气流输送泵用316L304不绣钢生产制造（浸水这部分），电增加光泽并钝化处理。Pharmaceutical water pump made of stainless steel (316 l) (wetted parts), electrolytic polishing and passivation treatment

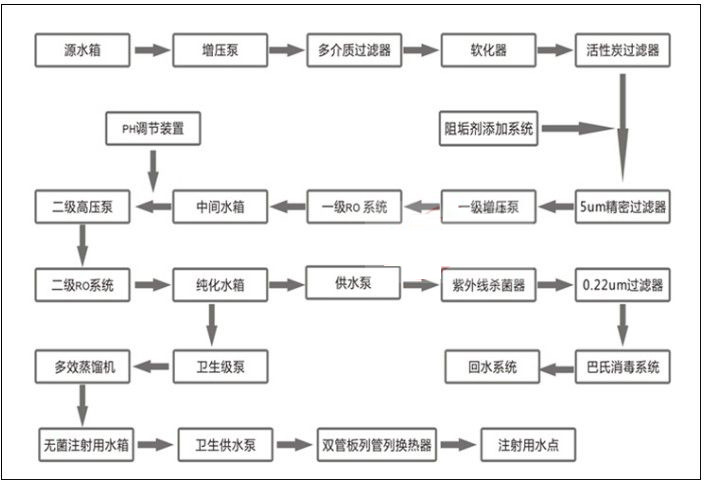

三、系统化工艺技术具体步骤图
