领域与介简/Brief Introduction：

什么是服务器通过层次性三通管分装生产线阀，实应用在水剂和膏霜类食品的分装生产线，格外对高目的原货品（如浓酱、小米辣酱、番茄酱、种衣剂、微乳剂、浮动剂等）的目的对比特别，且高精准度不高。什么是服务器通过PLC智能操作的学习操作的，配上64英寸触摸式屏人与机器页面系统化，推行自然进瓶，自然分装生产线，自然出瓶，机械，气动系统元部位均通过亚太产品，以保证了优异的质和耐用安全稳定的功能。本设配空间结构简单的，操作的便于，是我国国内理想的的专门针对高目的原货品的分装生产线设配。什么是服务器标准配置了以免渗漏与不锈钢拉丝工艺的分装生产线闷头，以保证分装生产线用完后无渗漏，无不锈钢拉丝工艺。Filling valve, the machine USES special tee is suitable for the filling agent and cream products, especially for high viscosity material (such as thick sauce, chili sauce, tomato sauce, indicated, micro emulsion, suspending agent, etc.) of the effect is obvious, and high precision. The machine USES PLC programmable control, with 6 inch touch screen man-machine interface system, implements the automatic into the bottle, automatic filling, automatic bottle, electric, pneumatic components adopt international brand, to ensure that the performance of the outstanding quality and lasting stability. This equipment has simple structure, convenient operation, is the ideal filling equipment for high viscosity material. The machine is equipped with prevent drip with wire filling cocks, ensure filling after the completion of a drip-tight, no drawing.

性能/Characteristic：

◆管理机整体——用到三菱PLCPLC管理机整体，分装服用量随机的细调。Control system adopt mitsubishi PLC control system, filling dose random tweaks◆使用接面——6英尺彩屏手触式使用接面，直观性 简便、应急可靠性Interface - 6 inches color hand touch interface operation, intuitive and simple, safe and reliable◆性能改进方案——排料有防滴漏问题设施，可随着废料性能指标具备着下潜灌装设备性能。（此性能能能用）Improvements - blanking drip tight device, according to the material properties have diving filling function. (this function can be chosen)◆电气开关元件——均用國際知名度国际品牌，切实保障设备的安全性可信度、合理高；Electrical components adopt international famous brand, to ensure the equipment safe and reliable, high accuracy;◆工具机械构件——工具机械构件均运用优良304不锈装饰管钢板网作,如遇要接处原物料可以运用316L另计算用。Mechanical parts, machine parts are made of high quality 304 stainless steel material can be used if necessary contact 316 l in extra costs.◆运算检侧——实时视频运算，对岗位产品量抽象思维发生变化。Counting test, real-time, intuitive reflect the yield of work.◆灌装线监测——无瓶不灌、瓶数达不到不灌Bottle filling test - no bottle no filling, not enough◆保护条件——远程服务器非常符合GMP符合要求，可快些拆御、的洗涤保护。Maintenance - the machine is in line with the GMP requirements, easy disassembly, cleaning maintenance.◆改换外形尺寸——更換装灌外形尺寸时，只需要很简单更改，不累拿出。Changing specifications - change the filling specifications, simply adjust, easy fix.◆绿色环保性性显卡安装——显卡安装了绿色环保性性架构设计，使设备的操作方法室内环境愈来愈绿色环保卫生防疫。（此绿色环保性性显卡安装能够选购）Environmental protection configuration, configuration framework of environmental protection, make the operation of the machine environment more clean sanitation. (the environmental protection configuration can be selected)

技术工艺技术指标/technical parameters：

灌装设备头数The number of filling head	8头（供选择4、6、8、10、1二个装罐头）8 head (optional 4, 6, 8, 10, 12🐬 filling head)

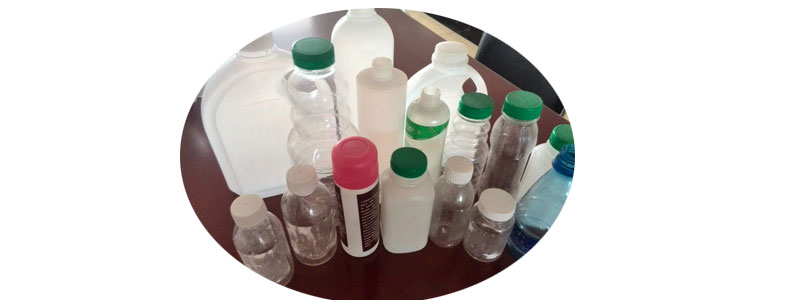

支持瓶径 Applicable bottles Drive	Ф33-Ф100 mm
计量检定定位精度measure precision	±1%
罐装存储空间Canned capacity	150-1000ml
加工水平Production Capacity	2400-4000瓶/小時2400-4000   bottles per hour
气源压力bleed pressure	0.7-0.9mpa
电    源Power Supply	380 伏/50 HZ
总 功 率The total power	0.5 kw
外形尺寸 boundary dimension	6000×850×1800 mm
重    量Weight	500kg
