主要用途与百度百科/Brief Introduction：

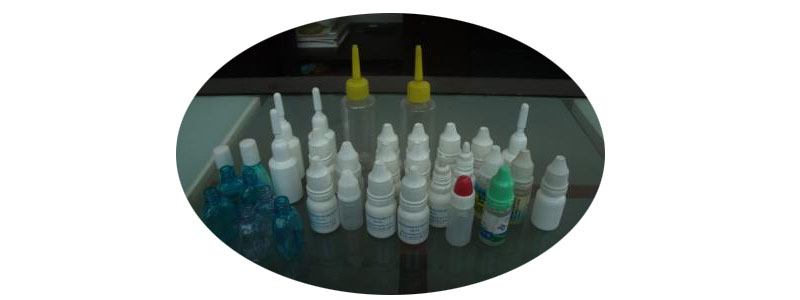

超声波焊接机适合于2-30ML各式各样材料做的圆圈扁形塑胶或窗玻璃容器的眼蓝药水装灌、手机烟油等小含水量装灌.超声波焊接机由高精确性度轴承装置度数装置提高度数等分盘准确分析上塞上盖;1度轴承装置机械传动装置提高旋盖头的升降架;恒扭距旋盖;扭动泵收费装灌;接触屏保持.无瓶不装灌,要加内塞,外盖.具准确分析精确性,机械传动装置平稳性,守护瓶子,收费准.进行简单等的优势。This machine is mainly available to fill eye-drop into various round and flat plastic or glass bottles with the range from 2--30ml.High precision cam provides a regular plate to position, cork and cap; accelerating cam makes capping heads going up and down ;constant turning arm screws caps; creepage pump measures filling volume; and touch screen controls all action. No bottle no filling and no capping. If there is no plug in the bottle, it must not cap until having been detected plug in the bottle. The machine enjoys high position accuracy, stable driving, precise dosage, and simple operation and also protects bottle caps.

特征 /Characteristic：

◆微笔记本电脑设置好、装量透彻、操作使用便。Man-machine dialogue system setting,visual convenient operation ,accurate filling level。◆虚拟主机轉速可使用无级变速直流变频空调变速。the mainframe running speed is stepless frequency conversion.◆制作量自動一定量设定。the product quantity can be controlled. ◆各种各样故章提醒特点(如低压力。无装罐、无内塞等)。Multi-failure prompt function (such as infrabar, no filling and no inserting plug etc).    ◆主动熄火功能性，对任意轮轨出現多次无装灌、无内塞状况可主动熄火。Automatic stop function, if there is no filling, no inner plug in any rail, it may stop automatically.

方法叁数/Main Technical Parameters：

适用人群外形尺寸Filling Volume	2-30ml
生产方式技能Productivity	30-60瓶/分  70-100瓶/分 30-60bottles/min  70-100bottles/min
灌装线高精度Filling Precision	≤±1%
24v电源 Power Supply	380V/50Hz
旋（轧）盖率Capping Rate:	≥99%
自功上塞率Stoppering rate	≥99%
供气Air Supply	1.3 m3/h    0.4-0.8Mpa
功效 Power	2.0 kw
POS机毛重Weight	550 kg
样貌厚度Dimension	1800*1000*1500mm
