主要用途与详细资料/Brief introduction：

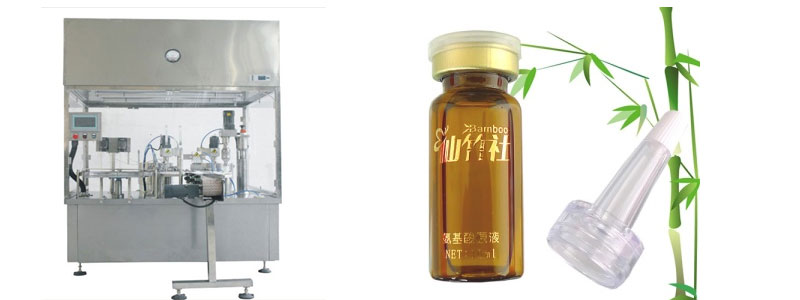

滤油机是在人才引进和消化吸收外国人高级技術的理论知识上，我来司综合性创新的有款专业的对应西林瓶的装灌、上塞、旋（轧）盖机。滤油机主要包括德国全进出口高控制准确度密封式气缸准确度等级卡位器，控制准确更高，开机运行耐用，操作蓄电量长。该准确度等级器架构十分简单，长时操作不必返修。该机 首要支持于各种各样小用量粘液的装灌、压塞及旋（轧）盖，如复方精油、皮下注射剂等。大面积用做商品、制药厂、化工公司制造行业及科技创新范畴。这手机既可手机单机产量，又可与洗瓶机、空气干燥机等机 组成了联调产量线。仍然符合标准国度GMP耍求。该机 能选择的客户耍求升级成电力电气硬件配置。NFGX-5/50 Automatic Vial Filling&rotation (rolling) machine is built in the absorption of foreign advanced tecnology, based on independently developed by the company ,It is the domestic leading level.This machine is suitable for a variety of small doses of liquid filling&capping such as oil, injection . Widely used in food, pharmaceutical, chemical industries and scientific research.  Single machine can produce, but also with washing machine, dryer and other equipment linked production line. Full compliance with the GMP requirements. The machine according to customer requirements to upgrade the electrical configuration

特征 /Characteristic:：

◆电脑软件界面确定、运行抽象化便、PLC掌控，装量*。Human-machine interface settings, an easy and intuitive, PLC control, the amount of precision equipment. ◆变频柜操作、制造线速度符合各种调整、一键计数法。Frequency control, the production rate be adjusted automatically count  ◆自动化停电功能性，无瓶不包装。No bottle no filling.◆园盘导航定位式灌装设备，稳定的可信度。Disc positioning filling, stable and reliable.◆高精准度凸轮轴精度等级计控住，定位功能*。High-precision cam meter control, precise positioning.◆使用SUS304及316L冷库保温隔热板的表层加工制造，全满足GMP要。SUS304 and 316L stainless steel, full compliance with GMP requirements.

技术水平性能/ technical parameters：

装量条件Filling volume	5-50ml
装量不确定度loading error	≤ ±1%
旋（轧）盖不成品率 Rotation (rolling) Cover pass rate:	≥99%
种植本事Production capacity	30-60瓶/分 钟  慢速 70☂-100瓶/分 钟     高速度 30-60 bottles / miಞn  70-100 bottles / minute (high speed)
压塞率Tamponade rate	≥99%
外接电源 Power	380V/50Hz
工率Power	2.0 kw
机毛重Net weight	600 kg
外貌尺寸图 Dimension	2000*1000*1500mm
