适用范围与简价/Purpose and introduction：

NQGF型西林瓶粉针洗烘分开包装轧盖标贴纸连动线 由QCL类别立试超音波检查波洗瓶机、AQMR铁路隧道式暖风配置高压蒸汽消毒烘干阶段箱、NQFGX类别数控加工挤出机螺杆粉剂分开包装机、NQ-50轧盖机、NQWTB-120标贴纸制冷机组成，也可手机单机在使用。非常适合于7-25ml规格为的西林瓶粉针的种植。能完毕喷淋系统灌水、超音波检查波粗洗、瓶内壁上水擦拭、瓶内壁上反复重新配置水擦拭、反复吹气、反复剥好水擦拭、反复重新吹气、瓶内壁上吹气、难以清理、加温、烘干阶段高压蒸汽消毒去热原、空气冷却、分开包装、加塞、轧盖、标贴纸等二十几道制作工序。NLGF schering bottles booster injection wash baked repackaging rolling cover labeling line consists of QCL series vertical ultrasonic bottle washer, ASMR tunnel type hot air circulation oven. NFFGX series CNC screw powder filling machine, NF-50 rolling machine, NFWTB-120 labeling machine, and also can be used stand-alone. Suitable for 7 to 25 ml specification schering bottles of water production. Can finish the spray water injection, ultrasonic thick bottle washing, the outer wall of water flushing, bottle wall continuous secondary circulating water flushing, a blowing, a fresh water rinse, two consecutive bottle blowing, blowing the outer wall, preheating and drying sterilization to pyrogen, cooling, packaging, gasser, cover, labeling and so on more than 20 procedures.

特色/characteristic：

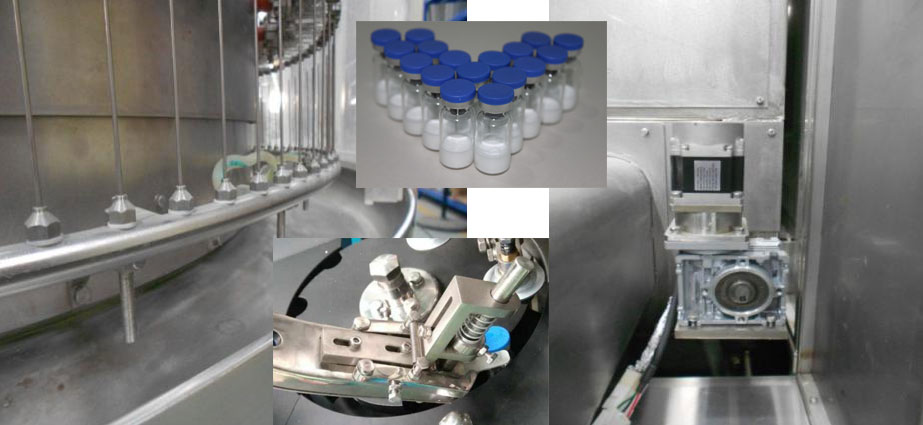

◆洗瓶机主要包括机制手夹瓶，选用多重型号规格的西林瓶；Bottle washer adopts manipulator clamp bottle, is suitable for a variety of specifications of schering bottles;◆洗瓶主要采用热气喷针回转式监视插进措施，擦洗作用好，省下再生资源。并开设针架防会抖传动装置，提高自己喷针插进水瓶座的准确无误度，缩减断针现像突发；Reciprocating mixer washing bottle with water spray needle track insert way, cleaning effect is good, save energy. And is equipped with needle shake device, improve the accuracy of injection needle inserted into the bottle, reduce breakage phenomenon;◆洗瓶一个水雾导压管、喷针截然自由分开用，以免了交叉性影响，符合标准GMP规则标准；Mixer washing bottle the water pipe, injection needles completely separate, to avoid the cross contamination, in line with the GMP requirements;◆洗瓶机进瓶螺丝杆式前可以加装部件实现储存块，有保护区螺丝杆式，下降碎瓶目的；Pieces into the bottle inside the screw before adding buffer block, protect the screw, reduce broken bottle;◆洗瓶机出瓶所采用整个美国进口云同步带，相连拨瓶块气力输送机西林瓶，行驶稳固可信；Pieces out of the bottle inside the whole import synchronous belt, the connection dial the bottle conveying schering bottles, operation is stable and reliable;◆烘干箱所采用制热循环系统供暖，水温不规则，低能耗；Oven adopts hot air circulation heating, temperature uniformity, energy saving;◆烘干箱存在防没预兆跳电保养功能键。加载防护；Mixer oven has suddenly loses power protection function. Run security;◆干燥箱可配不断循环水冷散热装备，不消耗的资金卧室风口尺寸，下降卧室的压差大不动平衡机的分险升温目的好；Mixer oven can match circulating water cooling device, not loss room air volume, reduce the risk of differential pressure imbalance in room cooling effect is good.◆烘干箱可配压力设备自动失衡点的调节设备极大减少房屋和烘干箱的压力不失衡点导致的的气温段偏移量，包装间洗烘间气温升高等教育一类型的毛病；Mixer automatic oven can match differential pressure balance control system to reduce the room and high temperature oven pressure difference caused by the imbalance of period of migration, filling between wash between baking temperature and so on a series of problems;◆真空烘箱例如DOP在线查测界面(例如压力、风量、尘埃什么意思再生颗粒在线查测口)；Mixer oven with DOP test interface (including wind pressure, wind speed, dust particle detection);◆烘烤箱急冷段可带在线平台灭菌处理系统(FDA特选)；Mixer oven cooling segment with the function of sterilization (FDA selected);◆烘干箱网带可带超声检查牵连CIP手机在线除垢程序；Type mixer oven mesh belt with ultrasound scanning CIP online cleaning system;◆烘干箱内腔室可确定全位置、多的视角高压低压水冲洗器；In pieces inside the oven chamber can be all-round, multi-angle high-pressure water flushing;◆预包装机选择国际联盟更较为先进的定制基本原则，具备着高速收费站度，所以分瓶合理，更新规格参数件便捷；Mixer racking machine adopts the most advanced design concept, high speed, and bottles of accurate, replacement of a convenient;◆预包装机采取互动伺服控制器无刷电机动力预包装罗杆三维旋转，装量高精度；Mixer racking machine adopts ac servo motor drive the repackaging screw rotation, the load accurately;◆分开装袋机通过装量的调整马上在手触屏上改变；Mixer packer adopts the load adjustment directly on a touch screen;◆分开包装机必选配百级反复式层流罩；Mixer packer optional circulating laminar flow hood best level;◆全自动灌装机机无瓶停此全自动灌装机，无瓶不用塞用途。Racking machine without stop packing bottle, no bottle no stoppered function.◆整线应用PLC总管理、变频式器、触感屏管理技术应用，正常作业安全稳定准确。触感屏可出现各电脑单机的正常作业模式，各管理点的出水量、大气压力、风压差、温等出现，各打开模式和报警出现，报警自我管理就诊和报警分享及排出办法。使全部整个分娩操作过程做到自功化管理，联线包括自动控制教育均衡发展性系统，维持分娩教育均衡发展准确。The whole line adopts PLC control, inverter, touch screen control technology, stable and reliable running. Touch screen can display the running state of each units, each control point of the water pressure, air pressure, air pressure, temperature, etc, according to the switch state and fault display, fault self-diagnosis and fault analysis and elimination method. Make the whole production process automation control, on-line has the automatic balancing device, ensure production equilibrium is reliable.可根据投资者的必须要，还可供配搭：According to the needs of customers, but also available for selection:◆西门子PLC、斯耐德、三菱数控系統、台达等产品管理系統；Pieces of Siemens, schneider, mitsubishi, Taiwan brands such as control system;◆水、气心理压力、水的温度及超声清洗波程度、尘沙颗粒、风速等级百度在线论文检测、报警功能、记下、彩打系统的；Pieces of water, gas pressure, water temperature and the intensity of ultrasonic, dust particles, wind speed on-line detection, alarm, record and print system;◆ORABS、CRABS、无菌室底部隔离器软件。ORABS, CRABS, aseptic isolator system.

技術参数值：/technical parameters

款式 model

研发业务能力production capacity

洗瓶优秀率率Washing bottle percent of pass

洗瓶碰坏率Washing bottle breakage

过滤除菌环境温度sterilizing temperature

预包装粗差The repackaging of error

加塞良好率率Gasser percent of pass

气氛层流洁净室度Laminar air cleanliness

真空箱抽速Vacuum pumping speed

电感量 capacitance

电源模块power supply

总用电量Total transmission energy

外观尺寸大小boundary dimension

7-25ML国家行业标准西林瓶 7-25ML GBvial

300瓶pcs/分min ～600瓶pcs/分min

≥99%

≤0.1%

300℃-350℃

≤±3%(0.1-10h)

≥99%

100级100c

25m3/H(外配)100cbm/H ～50m3/H(外配)100cbm/H

96kw～235.5kw

380v,50HZ

约 8200KG

约 2000×1750×2370mm
